A circuit diagram can look confusing the moment one wire splits into two paths. The good news is that series parallel circuit examples become manageable when you stop trying to solve the entire diagram at once. First identify what is truly in series, then identify what is truly in parallel, and reduce the circuit one section at a time.
This is more than a classroom procedure. The same reasoning helps you understand household wiring, battery-powered equipment, electronic kits, and circuit boards. A mixed circuit is simply a circuit containing both types of connections.

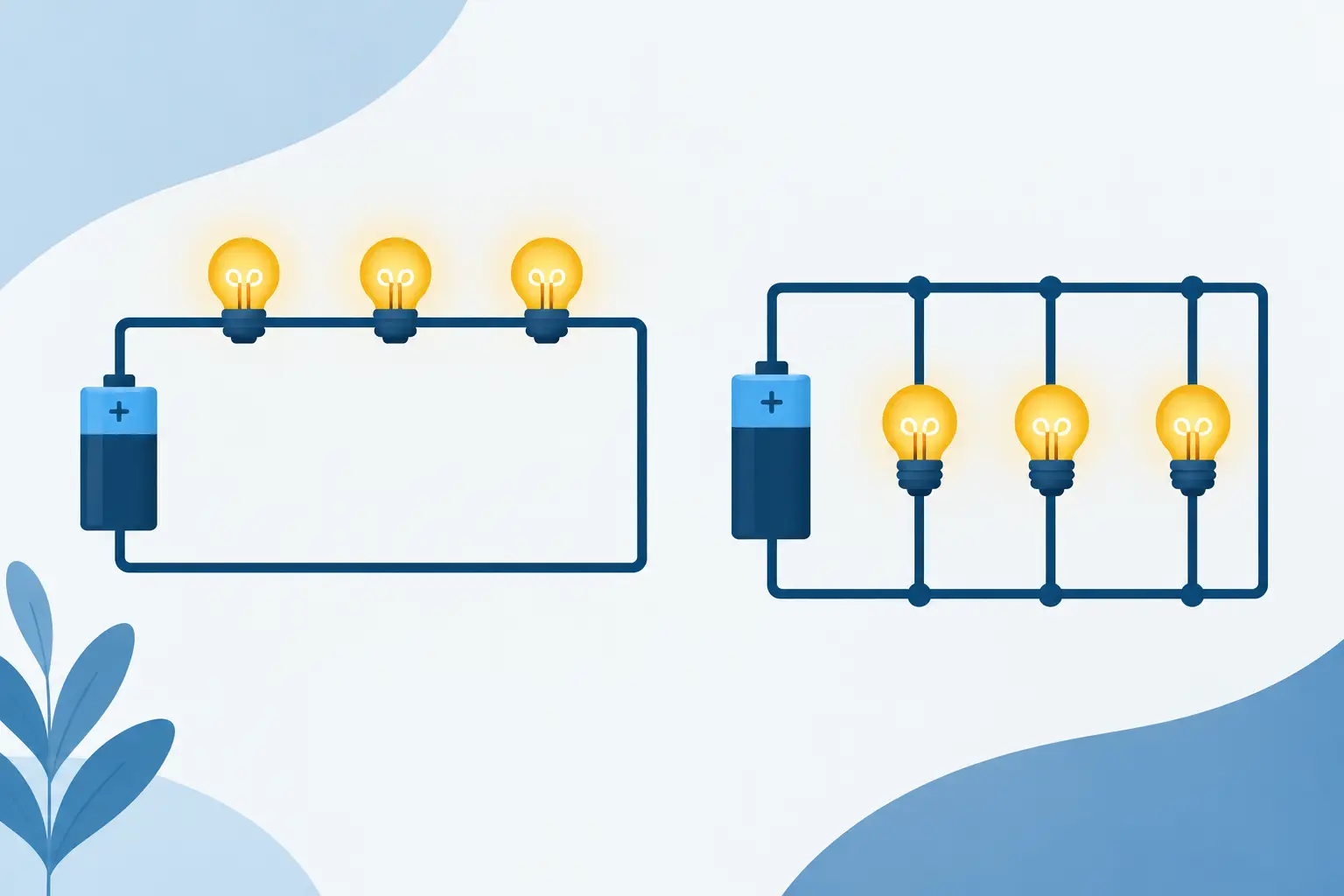

Start With the Meaning of Series and Parallel
Components are in series when current has only one path through them. The same current must pass through every series component. If two resistors are connected end to end and there is no branch at their shared connection, they are in series.
For resistors in series, add the resistance values:
`Rtotal = R1 + R2 + R3 + ...`
Components are in parallel when they are connected across the same two points, called nodes. Current has more than one path, and the voltage across each parallel branch is the same.
For two resistors in parallel, use this equation:
`1/Rtotal = 1/R1 + 1/R2`
A useful shortcut for two parallel resistors is:
`Rtotal = (R1 × R2) / (R1 + R2)`
The equivalent resistance of a parallel group is always less than the smallest resistor in that group. That fact is a valuable check. If two 100-ohm resistors in parallel give you 200 ohms, you added them as though they were in series.
Series Parallel Circuit Example: One Series Resistor and a Branch
Suppose a 24-volt DC source feeds a 4-ohm resistor, R1. After R1, the circuit splits into two branches. One branch contains a 6-ohm resistor, R2, and the other contains a 3-ohm resistor, R3. The branches then join and return to the source.
R2 and R3 are parallel because both are connected between the same two nodes. R1 is in series with the entire parallel combination, not with R2 alone or R3 alone.
Start by replacing the parallel section with one equivalent resistance:
`R2 || R3 = (6 × 3) / (6 + 3) = 18 / 9 = 2 ohms`
Now redraw the circuit in your mind. It has a 4-ohm resistor in series with a 2-ohm equivalent resistor:
`Rtotal = 4 + 2 = 6 ohms`
Use Ohm's Law to find total source current:
`I = V / R = 24 / 6 = 4 amps`
Because R1 is before the branch, all 4 amps flow through it. Its voltage drop is:
`VR1 = I × R = 4 × 4 = 16 volts`
The supply is 24 volts, so the parallel network must have the remaining 8 volts across it:
`24 V - 16 V = 8 V`
Since parallel branches have equal voltage, both R2 and R3 have 8 volts across them. Branch current is found separately with Ohm's Law:
`IR2 = 8 / 6 = 1.33 A`
`IR3 = 8 / 3 = 2.67 A`
At the branch point, the currents recombine. Their sum should equal the current entering the branch:
`1.33 A + 2.67 A = 4.00 A`
That result confirms the calculation. Notice the pattern: series sections share current, while parallel sections share voltage.
A Second Example With Series Resistors Inside a Parallel Network
Mixed circuits can be arranged differently. Consider a 30-volt source with two parallel branches. The first branch contains a 2-ohm resistor and a 4-ohm resistor in series. The second branch contains a single 3-ohm resistor.
Do not treat all three resistors as parallel. The 2-ohm and 4-ohm resistors are on the same unbranched path, so combine them first:
`Rbranch 1 = 2 + 4 = 6 ohms`
Now the circuit has a 6-ohm branch in parallel with a 3-ohm branch:
`Rtotal = (6 × 3) / (6 + 3) = 18 / 9 = 2 ohms`
The total current from the 30-volt source is:
`Itotal = 30 / 2 = 15 amps`
That 15 amps does not flow through every resistor. It divides at the parallel branches. Each branch has the full source voltage of 30 volts across it.
For the 6-ohm branch:
`Ibranch 1 = 30 / 6 = 5 amps`
Those 5 amps flow through both the 2-ohm and 4-ohm resistors because they are in series. Their individual voltage drops are:
`V2-ohm = 5 × 2 = 10 volts`
`V4-ohm = 5 × 4 = 20 volts`
The drops add to 30 volts, which matches the branch voltage. For the 3-ohm branch:
`I3-ohm = 30 / 3 = 10 amps`
The two branch currents add to the source current:
`5 A + 10 A = 15 A`
This example shows why a neat drawing can still be misleading. The physical position of a resistor on paper does not determine its relationship to another resistor. Nodes and current paths determine it.
A Reliable Method for Solving Series Parallel Circuits
When you work through series parallel circuit examples, redraw the circuit after every simplification. You do not need artistic skill. A simple sketch that preserves the same connections is enough.
Begin at the farthest section of the circuit where a clear series or parallel relationship exists. Replace that group with its equivalent resistance. Repeat until one total resistance remains. Then use the source voltage and Ohm's Law to find total current.
After finding total current, work backward through your simplified steps. This is how you restore the voltage and current values for individual components. For a series group, use the group current to calculate each voltage drop. For a parallel group, use the group voltage to calculate current in each branch.
This approach works for DC resistor circuits directly. In AC circuits containing capacitors and inductors, the same series-and-parallel logic still applies, but resistance is replaced by impedance, and phase angle becomes part of the calculation.
Common Errors That Cause Wrong Answers
One frequent error is calling two resistors series components just because they are drawn next to each other. If a branch exists at the connection between them, the current can divide there, so they are not in series.
Another error is assuming every resistor receives the source voltage. That is true only for components connected directly in parallel with the source. In a mixed circuit, some source voltage may be dropped across a series section before current reaches the parallel branches.
Also check whether your answer makes physical sense. Total resistance in a series circuit must be greater than any individual resistance. Total resistance in a parallel network must be smaller than the smallest branch resistance. Finally, use Kirchhoff's Voltage Law and Kirchhoff's Current Law as checks: voltage drops around a closed loop must equal source voltage, and currents entering a junction must equal currents leaving it.
Practice the Process, Not Just the Formula
Try this without looking back: a 20-volt source feeds a 5-ohm resistor in series with two 10-ohm resistors in parallel. The two 10-ohm resistors combine to 5 ohms. The total resistance is therefore 10 ohms, and source current is 2 amps. The first 5-ohm resistor drops 10 volts, leaving 10 volts across the parallel section. Each 10-ohm branch carries 1 amp.
If you reached those values, you used the right sequence. Keep tracing current paths, labeling nodes, and checking your work with Ohm's Law. With enough practice, a mixed circuit stops looking like a tangle of wires and starts looking like a set of small, solvable decisions.
